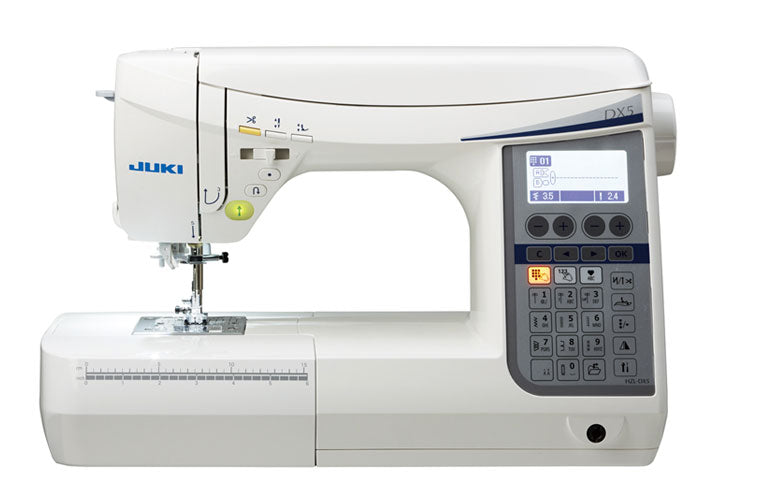

Zoom Juki HZL-DX5 Sewing Machine - Lay-buy deposit payment only

Juki HZL-DX5 Sewing Machine - Lay-buy deposit payment only

Subscription Save

Deposit payment for a JUKI HZL-DX5 $200.00

Remaining balance of $1,399.00 to be paid at your leisure in instalments of your choice.  Direct debit details to follow in separate email.

Price includes FREE shipping Australia wide + a 2 year warranty.

What JUKI says: "The Juki HZL-DX5 provides many fantastic features to bring your creations to new levels. With 185 stitch patterns and a host of clever functions to assist, this series is a sewing dream machine that will help you create like never before."

A brilliant offering from Juki, the HZL-DX5 ticks all the boxes for the home garment sewist.  With an incredible range of standard features and a bundle of included accessories - it's hard to go past this machine in terms of value!

Scroll down to read reviews our JUKI range from your fellow makers!

The key differences between this model and the HZL-DX7 are:

- The DX5 has 185 stitches, the DX7 has 287;

- The DX5 has 3 font stitches, the DX7 has 4;

- The DX5 includes 1 LED light above the needle, the DX7 has this one and an extra under the arm of the machine;

- The DX7 includes 2 additional feet (the open toe presser foot (O) + the edge sewing presser foot (R); and

- The DX7 includes the quilting extension table as standard, but with the DX5, it needs to be purchased separately.

If you quilt or create anything that requires the additional decorative stitches, the HZL-DX7 may be the perfect machine for you!

Download the Juki HZL-DX5 brochure here.

Download the Juki HZL-DX5 instructional manual here.

You can read more about why I've selected Juki as my brand of choice here.

Questions: Please feel free to get in touch using the chat with us bubble if you have any questions at all.

I know investing in a new machine is a big decision and you'll want to gather as much information as possible before being able to make a choice on the right machine.

I own the HZL-DX5 as my personal machine which I purchased before becoming a dealer.  If you'd like a fellow sewists opinion on this machine and why it was my choice when upgrading at the end of 2020, please know you're welcome to ask me anything.

Everyone has different needs with their sewing machinery, let's see if a JUKI is the right fit for you!

* Only available for Australian delivery.
** Shipping and a 2 year warranty are included in this price.  Please review the warranty details here.

Number of stitch patterns 185
Number of available fonts 3
Buttonhole Automatic (sensor system) with clamping plate
Direct stitch pattern selection 10 patterns
Start/stop button with coloured lights:
Green: Ready to start and/or while sewing
Red: Not ready to start
Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Maximum stitch speed 1,050 sti/min
Thread tension system Automatic
Presser foot pressure adjustment Stepless adjustment
Bobbin thread winder Bobbin winder with independent motor
Light \1 LED light
Change in the length/width of stitches Button system
Number of needle position (straight stitch/other than straight stitch) 37 / 3
Memory function 10 patterns
Height of lifting of presser foot (1 step/2 steps)
Button system: 6 mm
Lever system: 6 mm / 12 mm
Wide table Optional
Foot controller Included; with foot switch function
Auto thread trimming
Automatic needle threader
Automatic lock stitch and thread trimming
BOX feed mechanism
Drop feed
Quick bobbin preparation
Straight stitch slide plate
Float function
Free arm
Pattern (right and left) reverse
Twin needle sewing
Adjustable starting / reverse stitch speed
Lock stitch
Low-speed inching sewing
Presser foot pivot function
Presser foot horizontality holder button
Hard case with accessory storage part
Knee lifting lever


Maximum. Sewing Speed: 1050 spm
No. of Stitch Patterns (Fonts) : 185 (3)
Sewing Area (max.) : 203mm x 112mm
Max. Stitch Length : 5mm
Max. Zig Zag Width : 7mm
No. of Buttonholes : 10
Presser Foot Lift : Manual Hand Lever
Knee Press Lever
Electronic Foot LIft
Adjustable Foot Pressure : Yes
Needle Type : 705H

Standard Presser Foot
Bobbin (4)
Button Presser Foot (E)
Manual Buttonhole Presser Foot (I)
Overcasting Presser Foot (C)
Blind Stitch Presser Foot (D)
Zipper Presser Foot (B)
T-Shape Screwdriver
Seam Ripper
Cleaning Brush
Small Spool Cap
Middle Spool Cap
Walking Foot (N)
Patchwork Presser Foot (P)
Quilt Presser Foot (Q)
Twin Needle (one set)
Quilt Guide
Auxiliary Spool Pin
Foot Controller
Knee-lifting Lever
Instruction manual

Machine dimensions: 445(W) x 291(H) x 210(D) mm
Dimensions with hard case: 510(W) x 305(H) x 257(D) mm
Arm size: (203 x 112mm)
Weight: 10.3kg (machine only) - closer to 11.5kg with the presser foot, cord + hard case
